I've attached images and a zip file with the current design files for the speaker enclosure part. The acrylic plate is in the dxf as it is laser cut right now. I also included the datasheet and 3d model of the speaker itself.
Status:
Delivered
Accepting:
Fabrication bids
Type / Tier:
technical / silver
Quantity:
1 pcs
Material:
Plastic Injection Molded ABS or PC
Design price:
Payment pending
Fabrication price:
Pending
Order #:
20151218194957-326-11-0
Additional Information

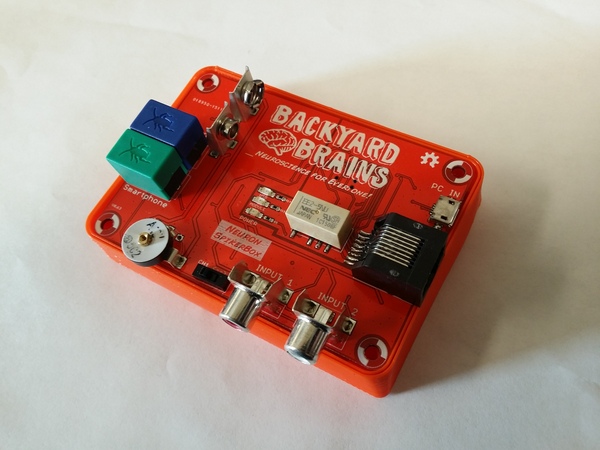

Right now we have a 4 wall part with a seperate acrylic plate that the speaker is glued to and the plate is attached with 6-32 screws.
We would like these two pieces to be integrated into one, along with a way to align or clip the speaker into place. The curves on the outer walls can be deleted if it makes molding easier.
